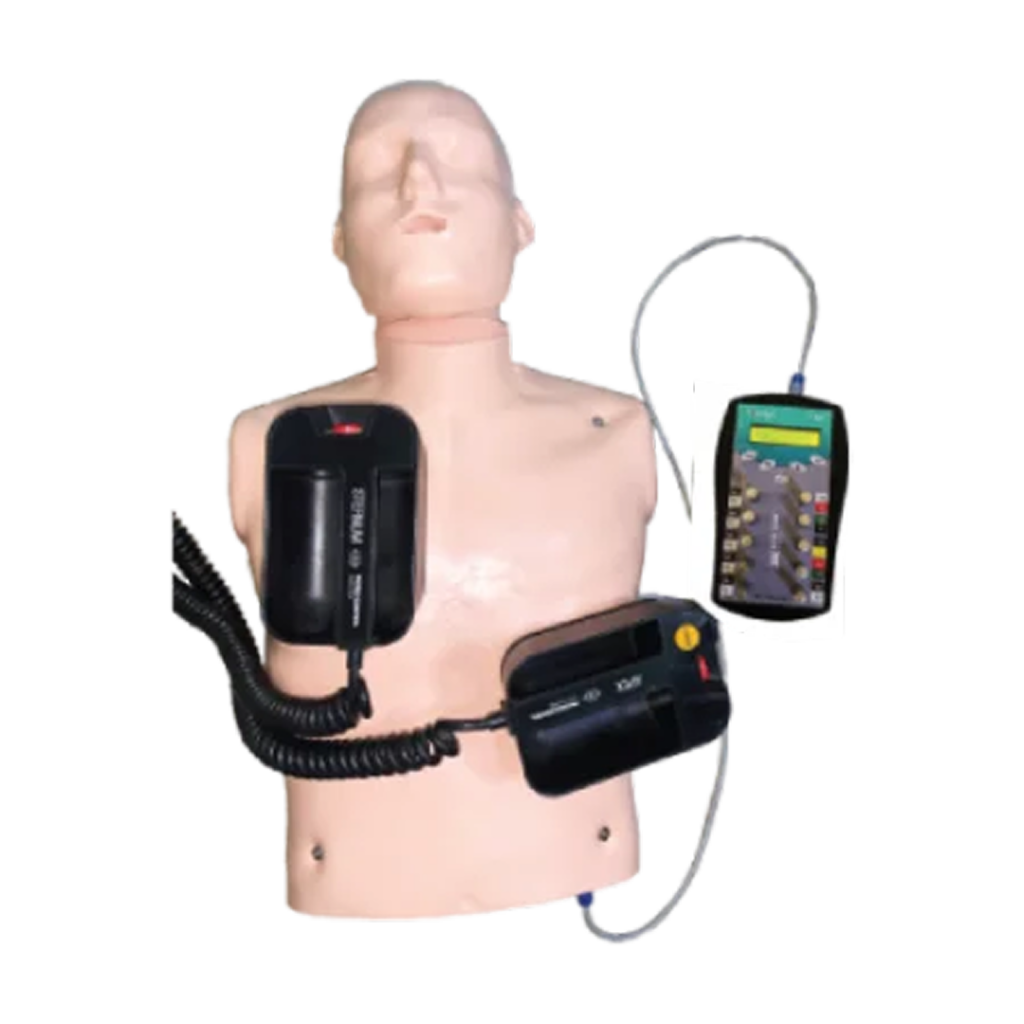

Resi-Shock Manikin with ECG Simulator E-500

The Vitaliya Resi-Shock Manikin with ECG Simulator E-500 provides a comprehensive platform for training in defibrillation procedures and ECG rhythm interpretation. The integrated simulator allows instructors to create various cardiac arrest scenarios, helping trainees develop practical skills in shock delivery, rhythm recognition, and emergency cardiac care.

With adjustable heart rate and waveform amplitude controls, the simulator enables flexible and realistic resuscitation training for medical professionals and students.

This system is ideal for advanced life support training programs, emergency medicine courses, and hospital simulation centers.

Key Features

Defibrillation Training

Designed for practicing defibrillator shock delivery during different cardiac arrest scenarios.

Dual Shock Ports

The manikin includes two shock ports (Apex and Sternum) to safely receive defibrillator energy during training.

Energy Absorption

Capable of absorbing up to 200 Joules in Monophasic mode and 100 Joules in Biphasic mode, ensuring safe and realistic simulation.

ECG Rhythm Simulation

Allows simulation of multiple cardiac rhythms, helping trainees understand ECG waveform interpretation.

Adjustable Heart Rate

The Rate (BPM) control enables adjustment of heart rate to simulate different cardiac conditions.

Adjustable ECG Amplitude

The mV (Amplitude) control allows modification of ECG waveform amplitude for varied training scenarios.

Arrhythmia Selection

The Arrhythmia (ARR) control keys allow users to cycle through different ECG rhythm patterns for comprehensive training.

Simulator Interface

• ON/OFF switch located at the top of the unit
• Keypad controls for Rate (BPM) and Amplitude (mV) adjustments
• Arrhythmia selection keys for changing ECG rhythm patterns
• ENTER key to confirm the selected arrhythmia waveform

General Specifications

Operating Environment

Temperature : 15°C to 40°C
Humidity : 10% to 90% Relative Humidity
Usage : Indoor Training Use

Power Supply

• 9V Alkaline Battery
• AC/DC Power Supply (9V to 12V)
• Output Current : 500 mA

Dimensions & Weight

Length : 21.0 cm
Width : 12.5 cm
Height : 3.3 cm
Weight : 0.45 kg
